SE1000-E600

Huawei · Enterprise Session Border Controller

Product Details

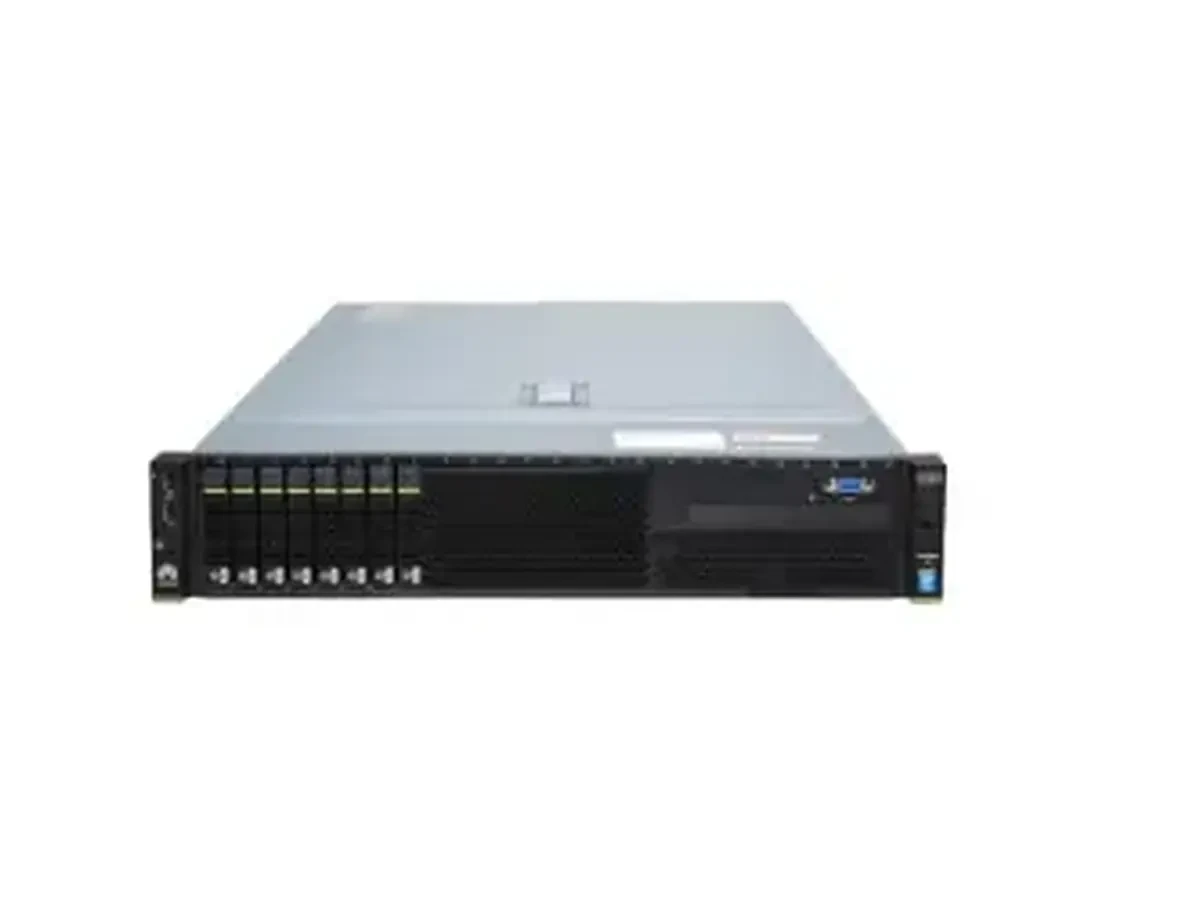

SE1000-E600 Product Image

Product Overview

In modern enterprises, IP-based voice, video, conferencing, and unified communications are essential components of daily operations, requiring SBC deployment for centralized VoIP management. The Huawei SE1000 series enterprise SBC supports 25-10000 concurrent sessions for small and medium-sized businesses. Built on the Huawei RH2288 carrier-grade server platform, it delivers communication assurance and cross-network access capabilities to address challenges arising from voice network evolution in scenarios such as mobile office work, branch interconnectivity, and multi-network convergence.

Management supports automatic adaptation, completing deployment in 5 minutes while simplifying the network through visual traffic management and unified multi-device integration. Security features include a built-in security analytics center and patented intelligent flow control, with dual-machine hot standby networking to withstand signaling storms. EC unified access enables hard terminals, soft clients, and web clients to connect to the enterprise network from the internet, with interoperability with Lync/S4B/Office 365. Converged interconnection supports terminal adaptation, protocol auto-adaptation, and codec auto-adaptation, along with video gateway capabilities compliant with GB/T 28181-2016.

Key Features

  • Automatically adapts and visualizes traffic management; deploy in 5 minutes with simplified, multi-device networking.
  • Built-in security analytics center and patented intelligent flow control; dual-machine hot standby networking to withstand signaling storms.
  • Supports hard terminals, soft terminals, and web clients accessing from external networks; interoperable with Lync / S4B / Office 365.
  • Protocol and codec self-adaptation with video fusion gateway capabilities, compliant with GB/T 28181-2016.

Typical Applications

  1. Scenario1Mobile Office & Remote Access: Employees connect to the corporate voice network via soft clients or web browsers while on the go.
  2. Scenario2Multi-site interconnection: Branches connect to the headquarters IP-PBX and video conferencing system via the internet.
  3. Scenario3Multi-network convergence and cross-vendor integration: Operator IMS, video surveillance GB/T 28181 platform, and voice network convergence

Technical Specifications (10Item

Model
SE1000-E600 (10000 concurrent paths)
Suitable for
Small and medium-sized enterprises, 25-10000 concurrent sessions
System Capacity
1,000,000 Users, 10000 Concurrent Sessions (Active-Passive HA)
System throughput
8 Gbps
Supported Protocols
UDP/TCP, RTP/RTCP/MSRP, TLS/SRTP, SIP/H.323, SNMP/NTP, GB28181
Encoding/Decoding
G.711/G.722/G.723/G.729/AMR-NB/AMR-WB, T.38/iLBC/DTMF/2833, EVS, H.264, H.265, and more
Hardware Platform
Huawei RH2288 Carrier-Grade Server Platform
Dimensions (H × W × D)
86.1mm (2U) × 447mm × 708mm
Weight and Power Consumption
Typical 20kg / 104W
Reliability
Dual-machine high availability, patent-pending intelligent traffic control, and built-in security analysis center

Parameters on this page are compiled from publicly available product documentation. Actual configurations shall be subject to the vendor's supply specifications and project contract.
